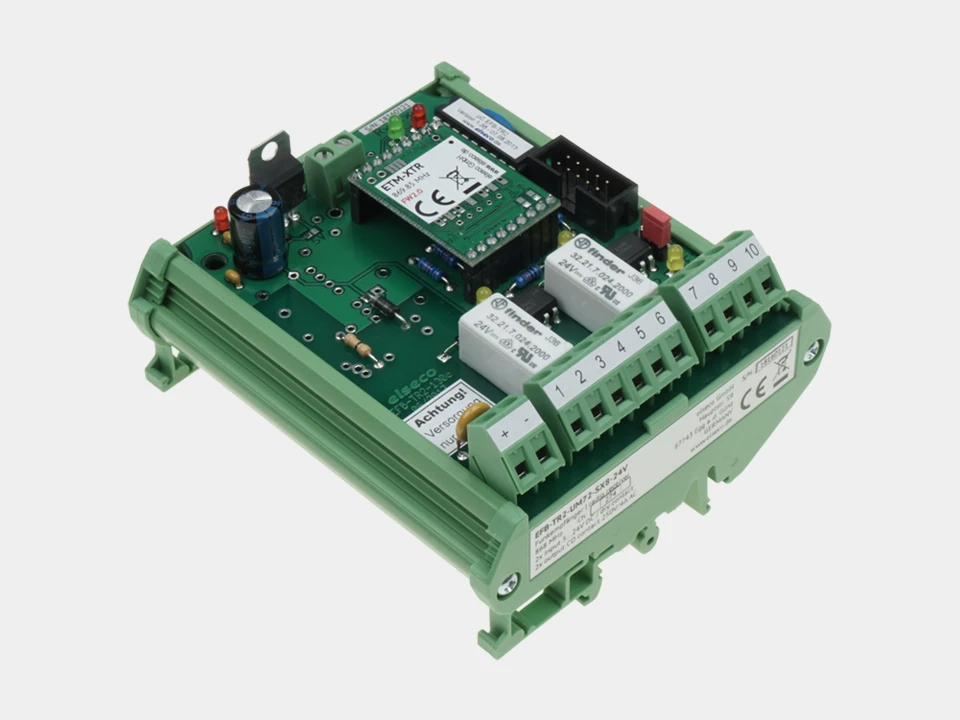

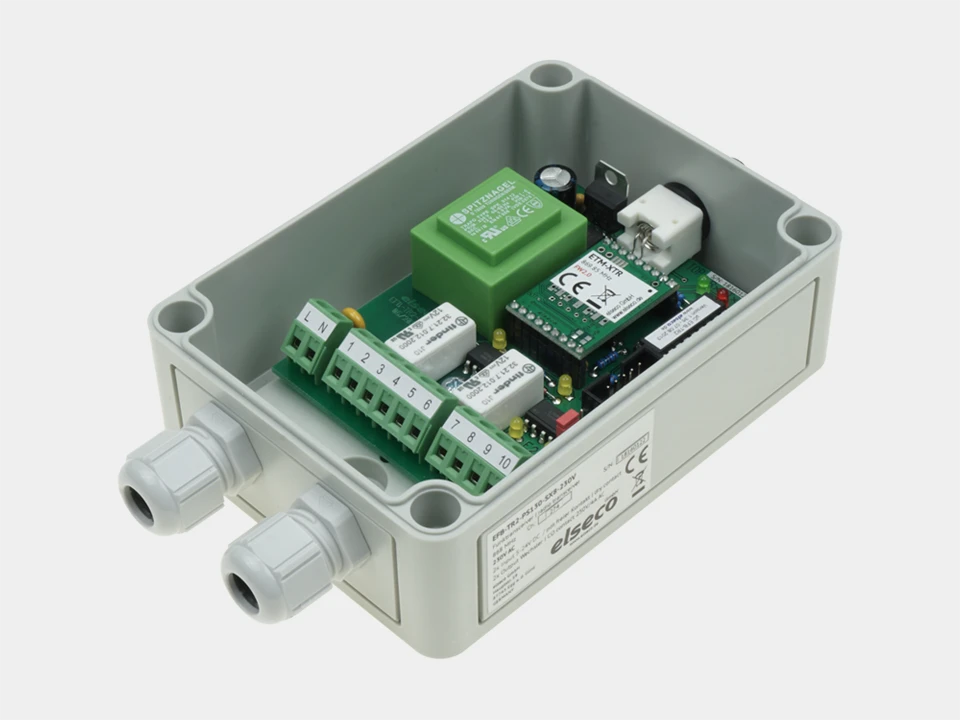

Radio transceiver EFB-TR2

  • Secure point-to-point transmission of two switching signals in both directions
  • Open field range of up to 400 m
  • Monitoring of the radio connection with integrated alarm function
  • Plug & Play: no programming required
  • Mounting options: suitable for surface mounting or TH 35 mounting rail
  • EN300220-compliant, for registration- and licence-free operation in the EU and Switzerland
Frequency 868 MHz
Transmission power Ca. 20 mW
Range (in open field) Ca. 400 m
Inputs: potential-free 2
Inputs: digital 2 x 5 ... 24 V DC
Outputs: CO contact 2 x 250 V / 4 A AC
Function 1:1 | Timer
Power supply 12 V DC | 24 V DC | 230 V AC
Protection class Max. IP66
Mounting type Rail TH 35 | Surface-mounted
