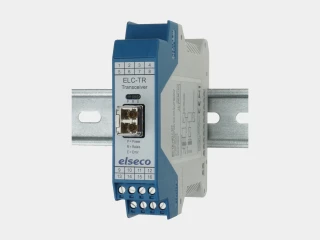

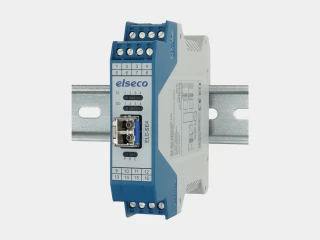

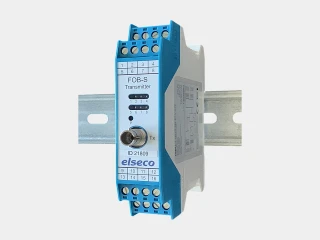

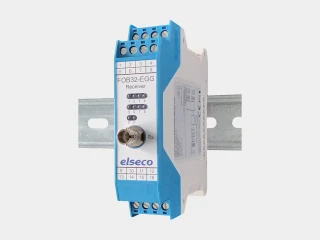

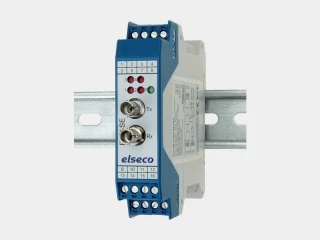

| ELC-4 | ELC-TR | ELW | FOB | FOB32 | |
| Transmission | Uni- | bidirectional | uni- | bidirectional | unidirectional | unidirectional | unidirectional |
| Fibre optic connection | LC | LC | F-ST | F-SMA | F-ST | F-SMA | F-ST | F-SMA |
| Fibre type | Multimode | Singlemode | Multimode | Singlemode | Multimode | POF | Multimode | POF | Multimode | POF |
| Optical budget (typ.) | 9 ... 15 dB | 9 ... 15 dB | 9 ... 15 dB | ||
| Optical range | Up to 80 km (dep. on SFP module) | up to 80 km (dep. on SFP module) | 100 m ... 40 km | 100 m ... 40 km | 100 m ... 40 km |
| Digital signals (24V DC) | 4 | 4 ... 256 | 4 | 0 | 4 | 8 | 8 | 16 | 24 | 32 |
| Analogue signals (V | mA) | 0 ... 16 | 0 | 2 | 4 | |||
| Precision (analogue signals) | ± 0.2 % | ± 0.2 % | |||
| Signal delay (latency) | Ca. 1.5 ms | ca. 1.5 ... 6.5 ms | ca. 200 ms | ca. 6 ms (analogue), 2 ms (digital) | ca. 5 ms |
| Addressing | optional | ||||
| Error monitoring | LED, relay, outputs | LED, relay, outputs | LED, outputs, relay (opt.) | LED, relay, outputs (opt.) | LED, relay, outputs (opt.) |
| Power supply | 10 ... 28 V DC | 10 ... 28 V DC | 12 V DC | 24 V DC | 12 V DC | 24 V DC | 12 V DC | 24 V DC |
| Dimensions (W x H x D) | 22.5 x 100 x 127 mm | 22.5 x 100 x 127 mm | 22.5 x 100 x 127 mm | 22.5 x 100 x 127 mm | 22.5 x 100 x 127 mm |
