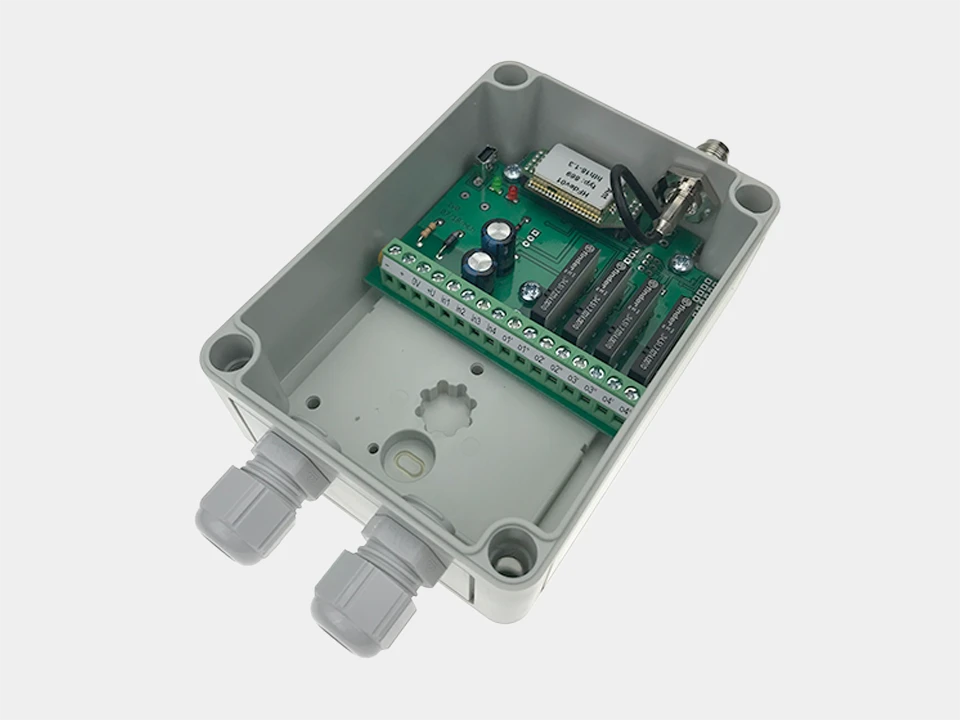

Radio transceiver EFB-TRL4

  • Secure point-to-point transmission of up to 36 inputs and outputs
  • Open field range of up to 5 km
  • Expandability: up to 4 expansion modules per device
  • System capacity: up to 7 active radio nodes or up to 31 receivers per system
  • Monitoring of the radio connection with integrated alarm function
  • Plug & play: no programming required

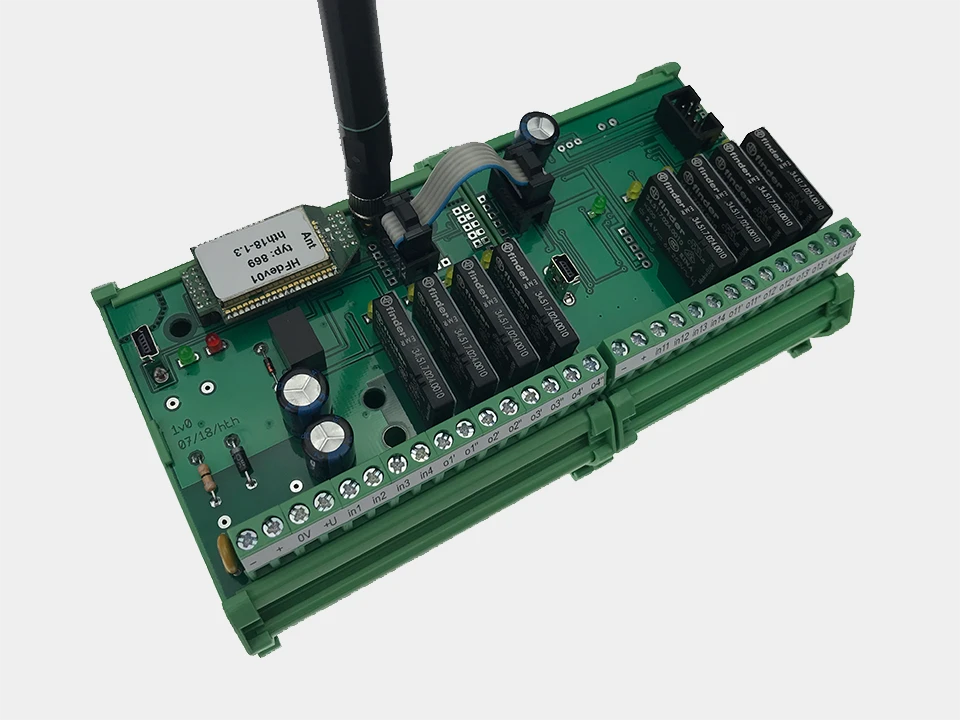

  • Mounting options: suitable for surface mounting or TH 35 mounting rail
  • EN300220 compliant, for registration- and licence-free operation in the EU and Switzerland
Frequency 868.00 ... 870.00 MHz
Transmission power Ca. 25 mW
Range (in open field) Ca. 5,000 m
Inputs: potential-free 1 ... 4
Inputs: analogue 1 ... 4 x 0 ... 10 V | 0 ... 20 mA DC
Inputs: digital 1 ... 4 x bis max. 30 V DC
Outputs: NO contact 1 ... 4 x 250 V / 4 A AC
Outputs: analogue 1 ... 4 x 0 ... 10 V | 0 ... 20 mA DC
Function 1:1 | Pulse | Changeover | On-Off
Power supply 12 V DC | 24 V DC | 85 ... 250 V AC
Protection class Max. IP66
Mounting type Rail TH 35 | Surface-mounted

The EFB-TRL4 long-range radio system offers a flexible, wireless solution for transmitting digital and analogue signals over long distances between multiple radio nodes. The basic unit is equipped with 4 inputs that can process both digital and analogue signals. It also has 4 outputs that can be factory-configured as either relay switching outputs (normally open contacts) or analogue outputs. Various combinations of relay and analogue outputs can be selected to meet the specific requirements of the application. The ability to integrate various add-on modules means that the basic unit can be flexibly adapted to almost any application, guaranteeing a high degree of versatility. The EFB-TRL4 system is constantly being further developed, with regular firmware updates offering additional flexibility and ensuring long-term investment security.
